Actual product reference3D Welded Fence Panels (Curvy Fence)
Fold-reinforced welded panels with posts, powder-coated or PVC

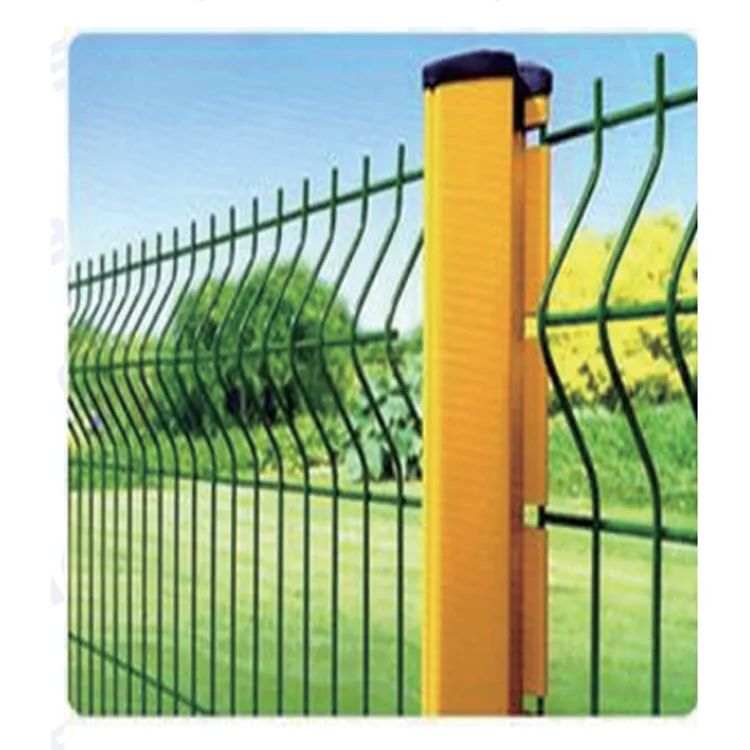

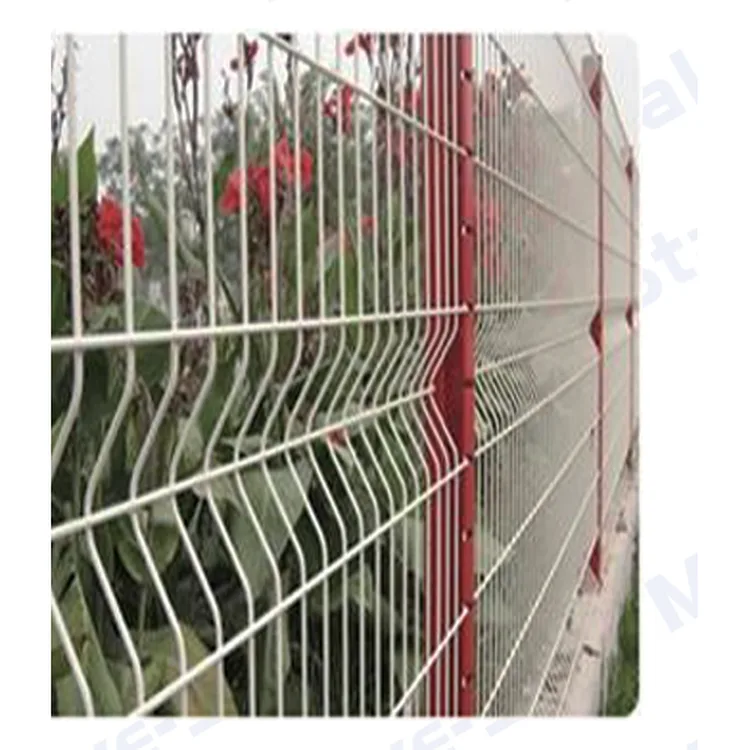

3D welded fence panels — also called curvy or V-fold panels — are rigid welded mesh panels with horizontal folds that add stiffness without extra wire. Leeter manufactures 3D panels in 3–7mm wire with matching square, rectangular or peach posts, hot-dip galvanized then powder-sprayed or PVC-coated. Euro-fence welded rolls are available for lighter garden runs.
Specification locked
Process controlled
Dimension verified
Packing documented
Technical specifications
Final values confirmed on approved order| Specification item | Available range | Order control |
|---|---|---|
| Wire diameter | 3–7mm (4mm and 5mm most popular) | Confirmed on sample, drawing or order sheet |
| Mesh opening | 50×100, 50×150, 50×200, 60×100, 60×200, 75×150, 75×200mm | Confirmed on sample, drawing or order sheet |
| Panel height | 1.0 / 1.2 / 1.5 / 1.7 / 1.8 / 2.0 / 2.5m | Confirmed on sample, drawing or order sheet |
| Panel length | 2.0m / 2.5m | Confirmed on sample, drawing or order sheet |
| Finish | Electro/hot-dip galvanized + powder-sprayed or PVC/PE dipped | Confirmed on sample, drawing or order sheet |
| Color | Green (RAL 6005), blue, white, custom | Confirmed on sample, drawing or order sheet |
| Posts | Square / rectangular / peach posts with clips, caps and fasteners | Confirmed on sample, drawing or order sheet |
| Euro fence option | Welded rolls 1.7–3.0mm wire, 0.6–2.0m high, 10–25m rolls | Confirmed on sample, drawing or order sheet |
Get pricing, packing and lead time.
Trial orders welcome
15–35 days from PO
FOB and CIF planning
See it made
Filmed on our own production floor — the same line and finish your order runs on. What you see is what ships.
- ✓ Factory-direct, not a trading company
- ✓ Inspection photos and video available per order
Packing built around handling
Packing reference

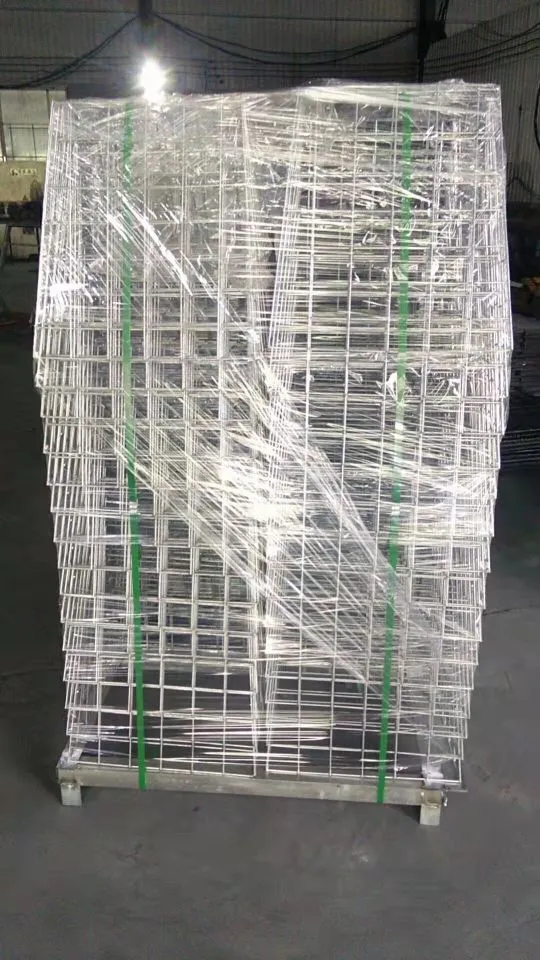

Panels flat-stacked and strapped on pallets or skids; posts bundled; clips and fasteners boxed. Container loading plan supplied.
- ✓ Unit and outer pack confirmed
- ✓ Shipping marks checked
- ✓ Loading plan and photos available
Quality documents
Applications
- →Factory, warehouse and logistics-yard perimeters
- →Residential communities, schools and parks
- →Roadside, rail and utility boundary fencing
Explore applications →Related buyer guides
3D Welded Mesh Fence Panels: Wire, Sizes, Heights & Posts
Full 3D welded fence panel spec guide: wire, mesh apertures, heights, finishes, posts and clips for importers.
9 min read →Form Stakes & FencingHorse Fencing: No-Climb Woven Mesh, V-Mesh and Welded Horse Panels
2x4 no-climb woven mesh is the safe horse fence; barbed wire never is. When to use woven mesh, V-mesh or welded panels, with the specs that matter.
5 min read →Form Stakes & FencingData Center & Critical-Infrastructure Perimeter Fencing: 358 Anti-Climb Mesh vs Palisade
358 anti-climb welded mesh vs steel palisade for data-center and critical-infrastructure perimeters: specs, heights, coatings and when to use which.
5 min read →Form Stakes & FencingCattle, Hog and Stock Panel Sizes: Dimensions, Gauge and Weight
Dimensions, wire gauge and weight for cattle, hog, combination and sheep/goat panels — and the Select vs heavy grade split that explains the weight spread.
7 min read →Buyer FAQ
Why choose 3D curvy panels over flat welded panels?
The horizontal V-folds act like ribs — a 4mm 3D panel resists climbing and impact loads comparably to a heavier flat panel, so you ship less steel per meter of fence. The folds also give the fence its recognizable architectural look.
Do the panels come with posts and fittings?
Yes. We supply matching square, rectangular or peach-profile posts with clips, caps and security fasteners, sized to panel height with buried or base-plate options. Panels-only supply is also available if you source posts locally.
What is the difference between 3D panels and euro fence?
3D panels are rigid pre-welded panels for permanent security fencing. Euro fence is a lighter welded mesh supplied in rolls (0.6–2.0m high) that follows ground contours — a cost-effective choice for gardens and backyards. We manufacture both.
Need a matched answer?
Send the drawing, destination and expected quantity to the same team that prepares your quotation.
Talk to our buyer desk
Ready to source 3D Welded Fence Panels (Curvy Fence)?
Turn your requirement into a quote.
Pricing, packing and lead time tied to the confirmed specification.
