Actual product referenceRazor Wire (Concertina)
BTO and CBT blade coils for high-security perimeters

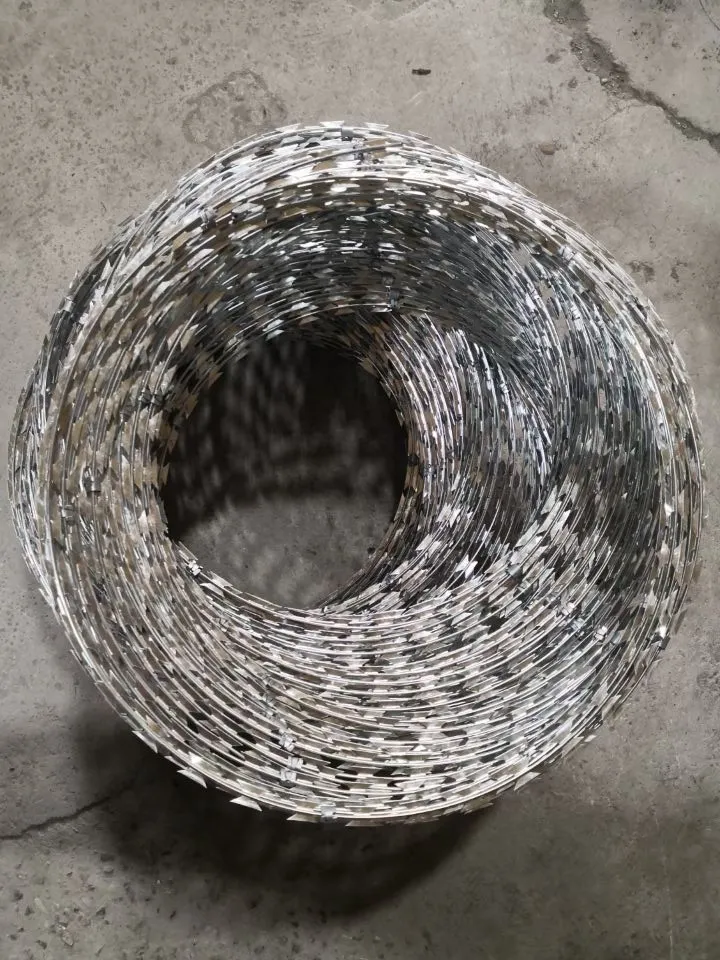

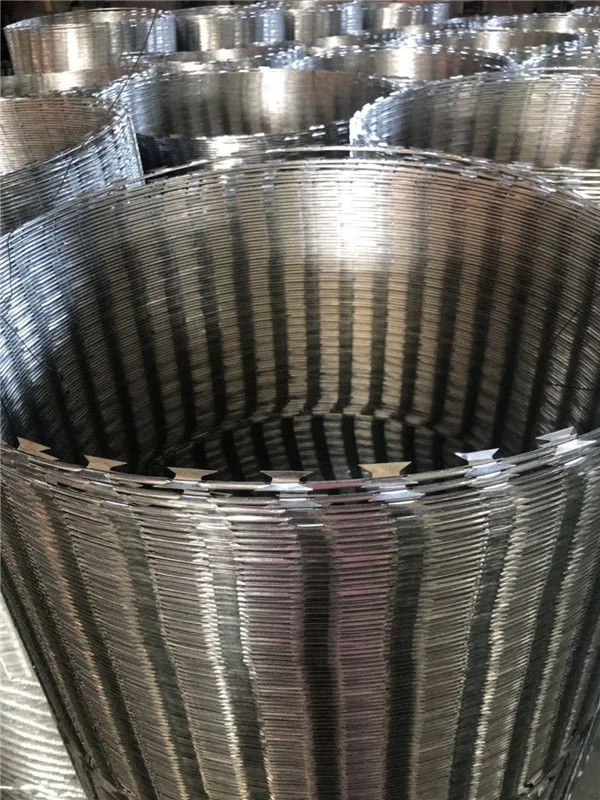

Razor wire — concertina wire — is high-tensile core wire with stamped steel blades, coiled for rapid deployment on high-security perimeters. Leeter manufactures BTO-10 through BTO-30 and CBT-65 blade profiles on 2.5mm core wire, in galvanized or stainless steel, as single coils or clipped cross-type concertina.
Specification locked
Process controlled
Dimension verified
Packing documented
Technical specifications
Final values confirmed on approved order| Specification item | Available range | Order control |
|---|---|---|
| Blade types | BTO-10 / 12 / 18 / 22 / 28 / 30, CBT-65 | Confirmed on sample, drawing or order sheet |
| Blade thickness | 0.5 ± 0.05mm (CBT-65: 0.6 ± 0.05mm) | Confirmed on sample, drawing or order sheet |
| Core wire | 2.5 ± 0.1mm high-tensile | Confirmed on sample, drawing or order sheet |
| Barb length / spacing | 10–65mm barbs at 25–100mm spacing by profile | Confirmed on sample, drawing or order sheet |
| Coil diameter | 450 / 500 / 600 / 700 / 800 / 960mm | Confirmed on sample, drawing or order sheet |
| Loops per coil | 33–102 (single or cross type) | Confirmed on sample, drawing or order sheet |
| Stretched length | 8–16m per coil, type dependent | Confirmed on sample, drawing or order sheet |
| Material | Electro/hot-dip galvanized or stainless steel blades | Confirmed on sample, drawing or order sheet |
Get pricing, packing and lead time.
Trial orders welcome
15–35 days from PO
FOB and CIF planning
Packing built around handling
Packing reference

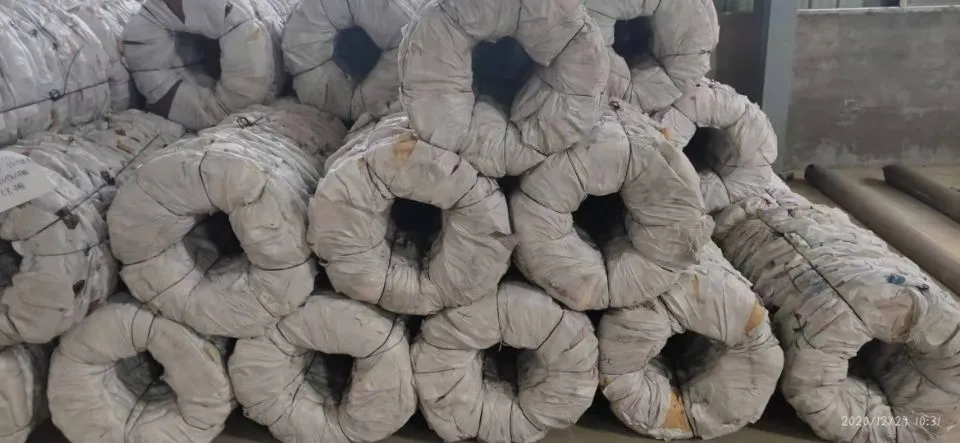

Coils compressed, strapped and wrapped in waterproof paper with woven cloth outer; palletized or floor-loaded to container.
- ✓ Unit and outer pack confirmed
- ✓ Shipping marks checked
- ✓ Loading plan and photos available
Quality documents
Applications

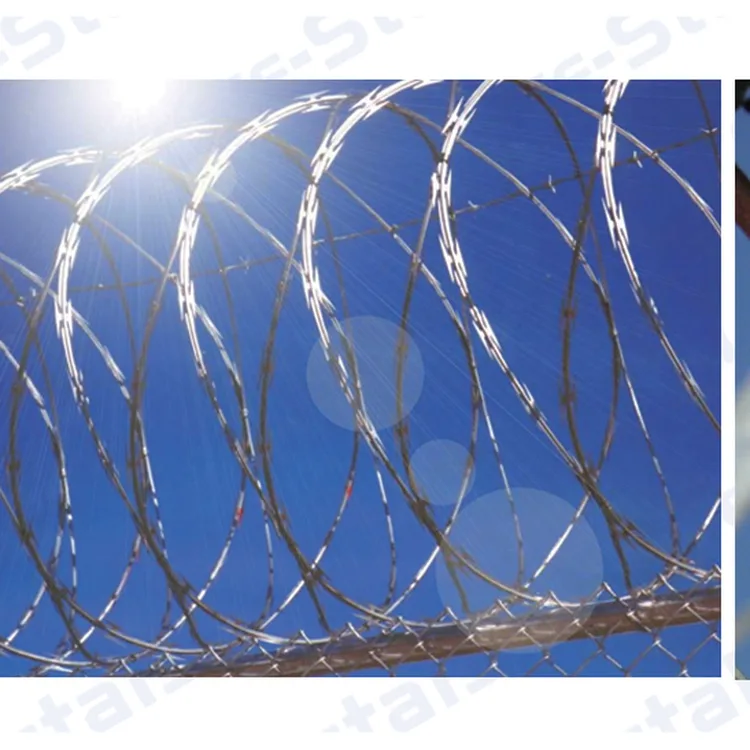

- →Prison, military and border security lines
- →Airport, port, substation and warehouse perimeters

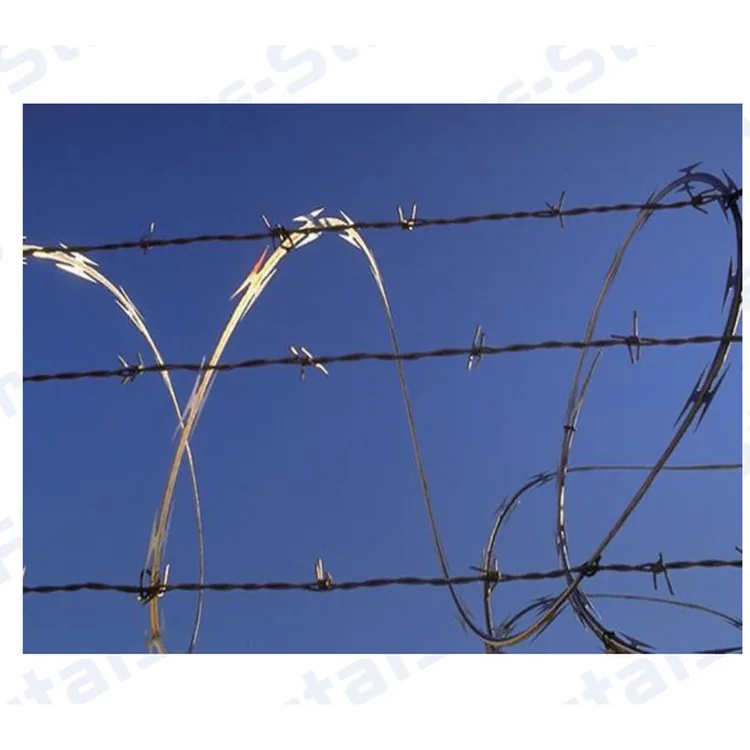

- →Wall and fence topping for commercial property
Explore applications →Related buyer guides
Buyer FAQ
What is the difference between BTO and CBT razor wire?

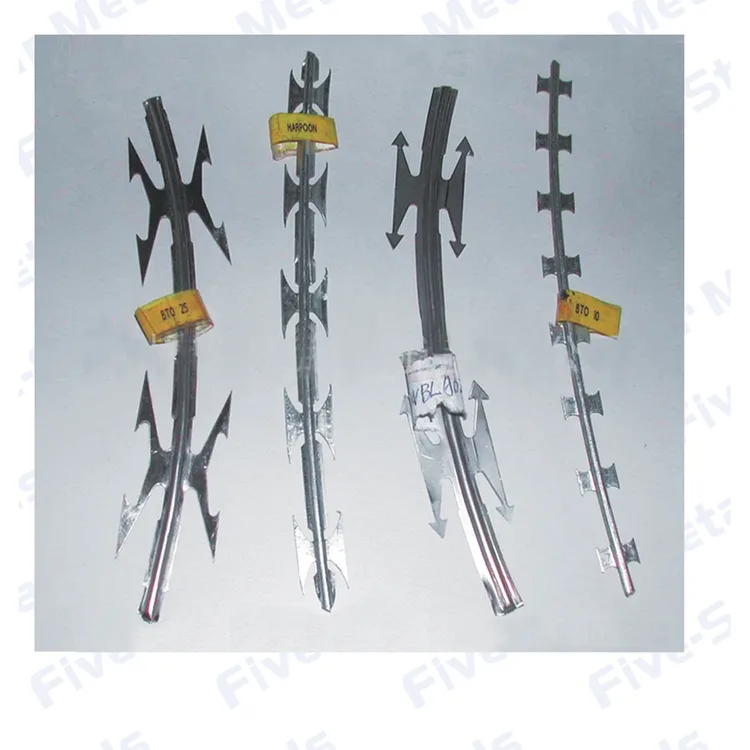

BTO profiles have short blades (10–30mm) on standard spacing — the general-purpose security range. CBT-65 carries long 65mm blades on 100mm spacing for maximum deterrence on prison and military installations. Blade numbers refer to barb length in millimeters.
What is cross-type (concertina) razor wire?
Cross type clips adjacent loops together so the coil self-supports when stretched — a 500mm cross-type coil with 102 loops opens to about 16m of stable helical barrier. Single coils without clips suit wall-top mounting on a support wire.
Which coil diameter should I specify?
450–500mm coils are the standard wall-top size; 700–960mm coils build free-standing ground barriers and multi-coil pyramids. We quote loops, stretched length and packing per diameter so you can price per protected meter.
