Actual product referenceChain-Link Temporary Fence
Economical woven-mesh portable fence panels

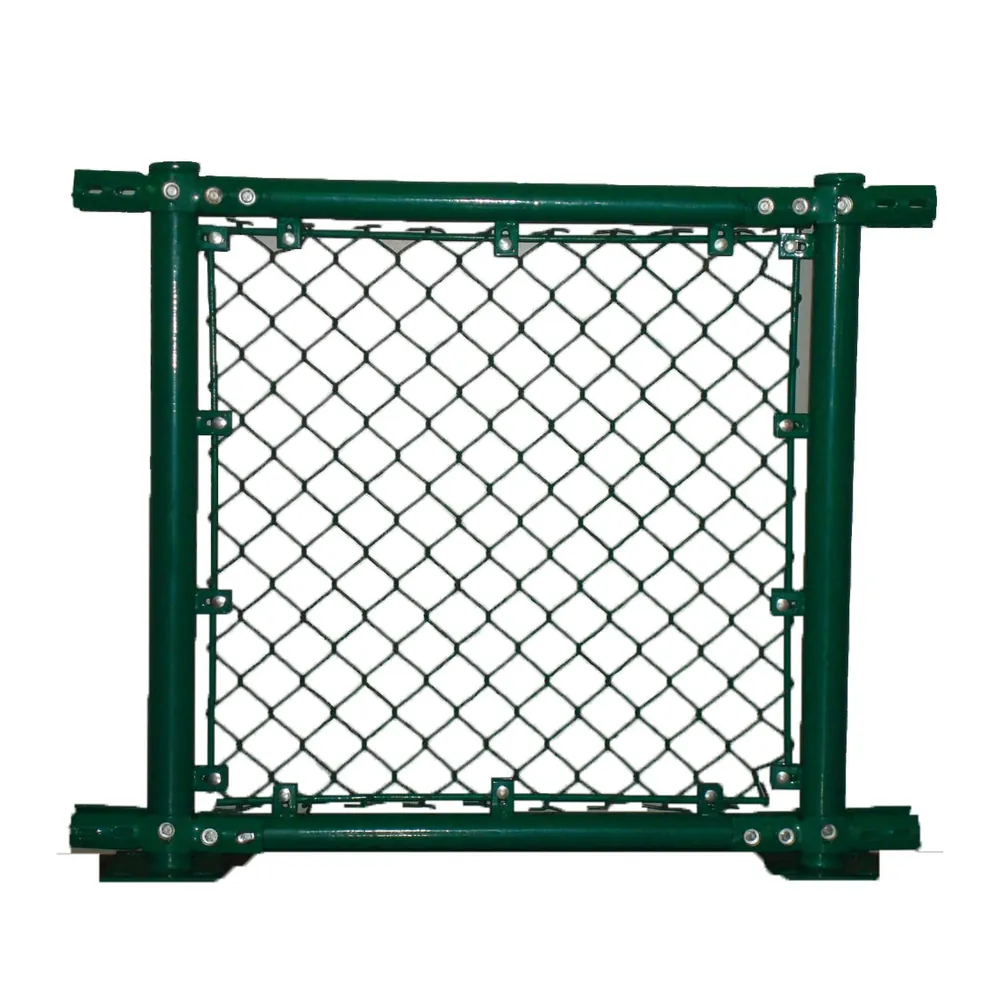

A chain-link (woven mesh) temporary fence is a portable panel of galvanized chain-link mesh in a tubular frame — the most cost-effective temporary fencing, giving good visibility and a secure boundary. Leeter manufactures woven-mesh temporary fence panels in Hebei, China and at our Vietnam joint-venture fence factory, with 1.5–4.0mm wire, 50×50mm to 70×70mm mesh, US 6×10/6×12 ft formats, and standard heights from 1.0m to 2.0m with feet and couplers.
Specification locked
Process controlled
Dimension verified
Packing documented
Technical specifications
Final values confirmed on approved order| Specification item | Available range | Order control |
|---|---|---|
| Panel type | Woven / chain-link mesh, free-standing | Confirmed on sample, drawing or order sheet |
| Wire diameter | 1.5–4.0mm | Confirmed on sample, drawing or order sheet |
| Mesh opening | 50×50mm, 60×60mm, 70×70mm | Confirmed on sample, drawing or order sheet |
| Height | 1.0 / 1.2 / 1.5 / 1.8 / 2.0m (6 ft US standard) | Confirmed on sample, drawing or order sheet |
| Length | 2.0 / 2.5 / 3.0m; 10–12 ft US panels | Confirmed on sample, drawing or order sheet |
| Regional standards | 12 ft × 6 ft (US rental fleets) | Confirmed on sample, drawing or order sheet |
| Surface | Electro/hot-dip galvanized, powder-sprayed, PVC/PE dip-coated | Confirmed on sample, drawing or order sheet |
| Color | Green, blue, custom | Confirmed on sample, drawing or order sheet |
Get pricing, packing and lead time.
Trial orders welcome
15–35 days from PO
FOB and CIF planning
Packing built around handling
Packing reference
Panels stacked and strapped on pallets; feet and couplers boxed. Container-loading plan on request.
- ✓ Unit and outer pack confirmed
- ✓ Shipping marks checked
- ✓ Loading plan and photos available
Quality documents
Applications
- →Site perimeters on a budget
- →Homes, businesses and vacant lots
- →Events and temporary boundaries
Explore applications →Related buyer guides
Welded Mesh vs Chain-Link Temporary Fence: Which to Buy?
Welded mesh vs chain-link temporary fence compared on security, cost, weight and best use.
4 min read →Form Stakes & FencingHow to Keep Temporary Fencing From Blowing Over: Ballast, Bracing and Screen
Most blow-overs start with privacy screen and not enough weight. The ballast numbers, bracing layouts and panel choices that keep a fence line standing.
6 min read →Sourcing & ImportingTemporary Fencing Suppliers in China: Clusters, the US Duty Question and the Vietnam Option
Where temporary fence factories cluster, how the US anti-dumping order changes sourcing, and the RFQ that compares real steel — not just panel price.
7 min read →Buyer FAQ
Is chain-link or welded-mesh temporary fencing cheaper?
Chain-link (woven mesh) temporary fencing is usually the cheaper option and offers good visibility, while welded-mesh panels are more rigid and harder to cut through. Choose chain-link for economy and welded mesh for security.
What size are chain-link temporary fence panels?

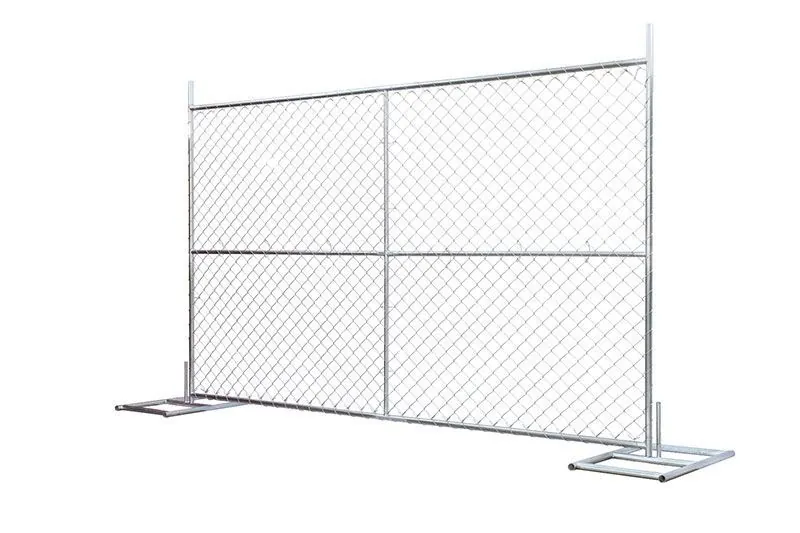

Common panels are the US 6ft × 12ft (1.83 × 3.66m) and 6ft × 9.5ft frames and the metric 2.0–2.1m × 2.4–3.5m formats, with a chain-link (diamond) mesh infill on a round-tube frame. Mesh aperture is typically 50–60mm and wire 2.5–4.0mm; panel size, mesh and finish are built to your market's standard.
How are chain-link temporary fence panels held up?
Each panel drops into a portable concrete or recycled-plastic foot and links to the next panel with a coupler clamp — no digging or footings. For windy or exposed sites, add ballast blocks and cross-bracing, and stabilize the run with a raker every few panels.
What finish options are available?
Hot-dip galvanized is standard for outdoor rental fleets; PVC-coated (usually green) and powder-coated options add appearance and extra corrosion life. The frame and mesh are normally finished the same way so the fence weathers evenly.
Can I mix chain-link and welded-mesh panels in one order?
Yes — both use the same tube frames, feet and clamps, so importers commonly split a container between economical chain-link for events and rigid welded mesh for secure sites. As an OEM manufacturer we build both to your specified height, length, wire gauge and coating.
