Actual product referenceConstruction Nails
Common, concrete, roofing, pallet, duplex and finish nails
Leeter manufactures the full construction nail range from one campus: common wire nails from 3/8" to 7", hardened concrete nails, coil and umbrella roofing nails, square boat nails, ring/spiral pallet nails, duplex forming nails, finish nails and cut masonry nails — polished, electro-galvanized or hot-dip galvanized.
Specification locked
Process controlled
Dimension verified
Packing documented
Technical specifications
Final values confirmed on approved order| Specification item | Available range | Order control |
|---|---|---|
| Common nails | 3/8"–7" (9.5–178mm), 20–4 BWG; common, countersunk or checked head | Confirmed on sample, drawing or order sheet |
| Concrete nails | 3/4"–3", 12–7 BWG, hardened 45#/55#/70# steel, black or EG | Confirmed on sample, drawing or order sheet |

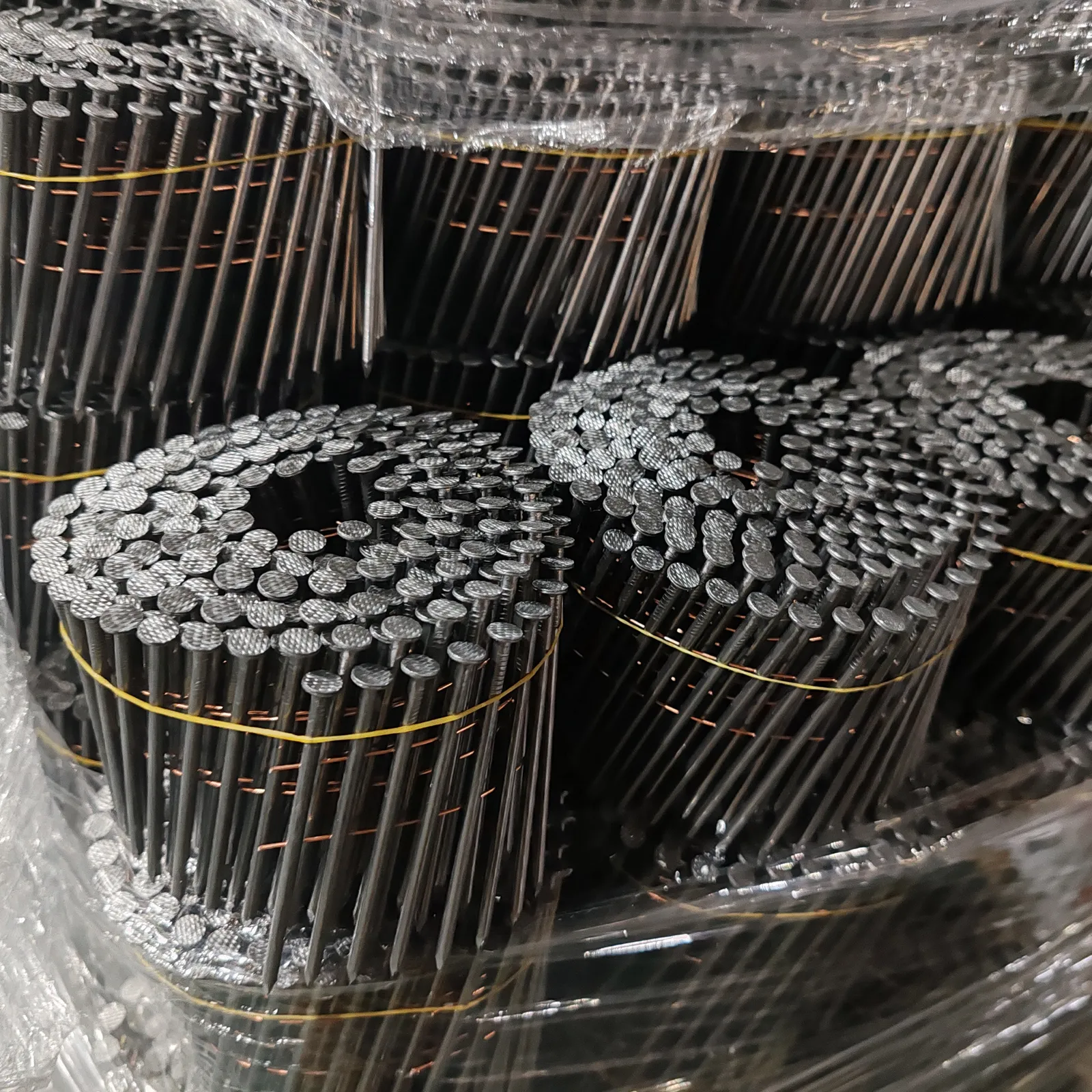

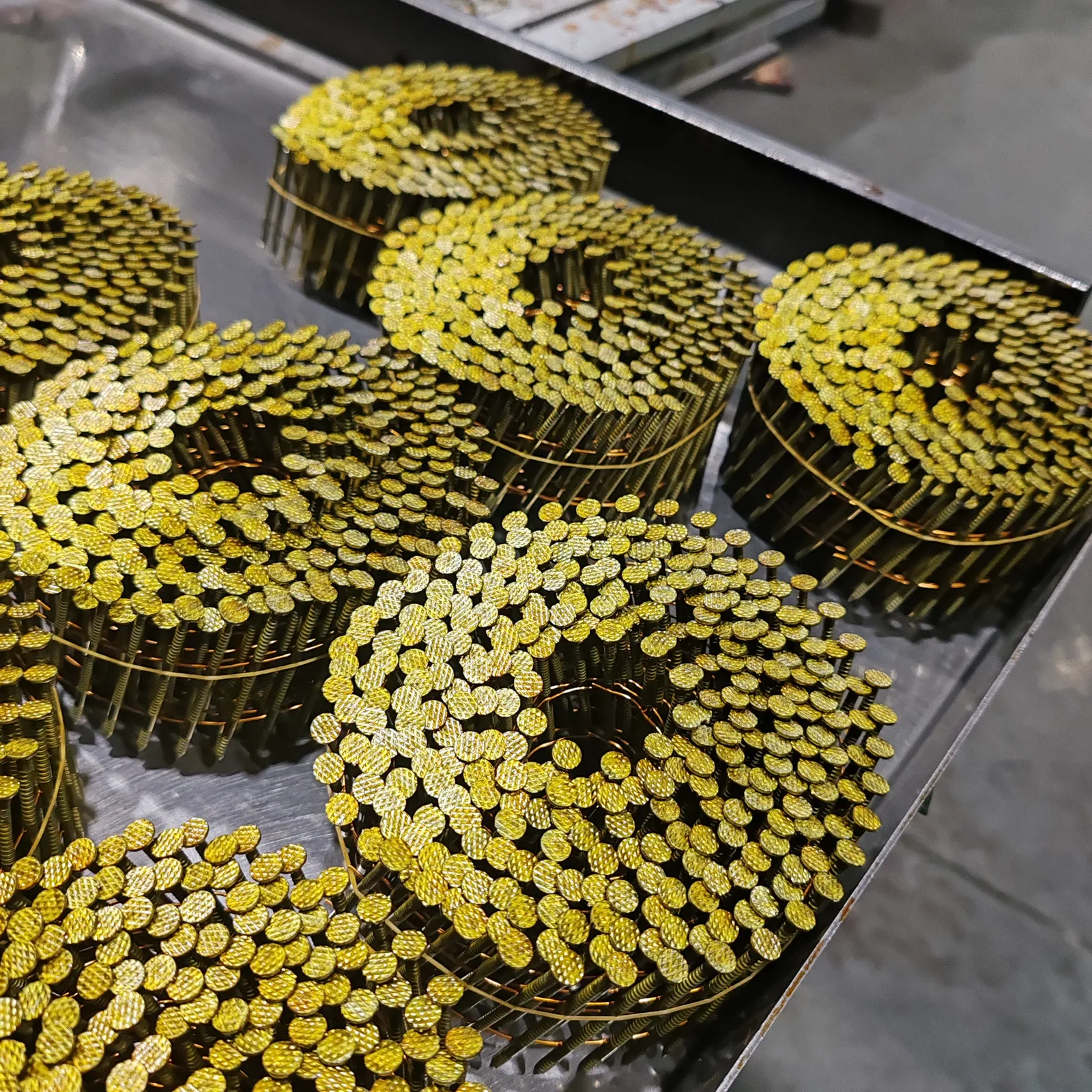

| Roofing | Coil nails 3/4"–2" smooth shank; umbrella-head 1-3/4"–3", plain or twisted shank | Confirmed on sample, drawing or order sheet |
| Pallet nails | 1-1/2"–3", 11–12 ga, ring or spiral shank, 105–260/lb | Confirmed on sample, drawing or order sheet |
| Duplex head | 1-3/4" 6D to 4" 30D, double head for temporary forming | Confirmed on sample, drawing or order sheet |
| Finish nails | 1" 2D to 4" 20D, cupped head, bright/EG/HDG | Confirmed on sample, drawing or order sheet |
| Cut masonry nails | 1-1/4" 3D to 4" 20D, tempered, tapered shank, blunt point | Confirmed on sample, drawing or order sheet |
| Also available | Galvanized square boat nails 1"–6" | Confirmed on sample, drawing or order sheet |
Get pricing, packing and lead time.
Trial orders welcome
15–35 days from PO
FOB and CIF planning
See it made
Filmed on our own production floor — the same line and finish your order runs on. What you see is what ships.
- ✓ Factory-direct, not a trading company
- ✓ Inspection photos and video available per order
Packing built around handling
Packing reference
Small boxes (retail) into master cartons, or bulk 25kg cartons; palletized and stretch-wrapped. Mixed-size containers welcome.
- ✓ Unit and outer pack confirmed
- ✓ Shipping marks checked
- ✓ Loading plan and photos available
Quality documents
Applications
- →Framing, forming and general carpentry
- →Concrete, masonry and furring attachment
- →Roofing, pallets and packaging plants
Explore applications →Related buyer guides
Construction Nail Types: Common, Concrete, Duplex and Roofing Nails
Common, concrete, duplex and roofing nail sizes, gauges and finishes from a China construction nail manufacturer.
7 min read →Wire MeshMetal Lath Types: Diamond Mesh Weights, Self-Furring and Paper-Backed
Diamond mesh lath weights, self-furring and paper-backed types, sheet sizes and corner bead from a China manufacturer.
7 min read →Buyer FAQ
Can you mix nail types in one container?
Yes — most buyers combine common, concrete and roofing nails in one 20ft container with per-size cartons and a consolidated packing list. Minimums apply per size, not per container.
What is a duplex head nail for?
The double head lets crews drive the nail home to the lower head and still pull it cleanly by the upper head — the standard nail for temporary formwork and scaffolding that must come apart.
